‌1. Overview

ZYJ-M type mine compressed air and water supply self-rescue device is a new type of product integrating isolated gas breathing device and drainage device. The device consists of constant gas supply, constant water supply and manual stabilized pressure regulator.

2. Main Structure

         This device adds inlet pipe, water purification filter, water-type pressure gauge, drainage device (multi-group) and so on on the basis of pressurized air self-rescue device. The box, mounting plate, total inlet pipe and total inlet pipe are made of stainless steel. A box of six groups of water supply, six groups of gas supply (can be designed according to the requirements of the group). The device in addition to the self-absorption filtering masks can breathe directly into the fresh air, but also drink the municipal tap water filtered by the water purification filter. Fresh air and water are connected through a spring hose, which can be freely extended and retracted, easy to use. The device's water purification filter cartridge adopts the current popular water quality filtration advanced PP cotton imported cartridge, able to all kinds of impurities, rust, silt, colloidal substances, suspended solids, organic matter, residual chlorine and other substances for many times, and can be bacteria, foreign colors and odors of substances, fine pollutants, adsorbent substances to effectively get rid of, the water quality of the sweet and tasty, and greatly improve the purification of the water quality of the water.

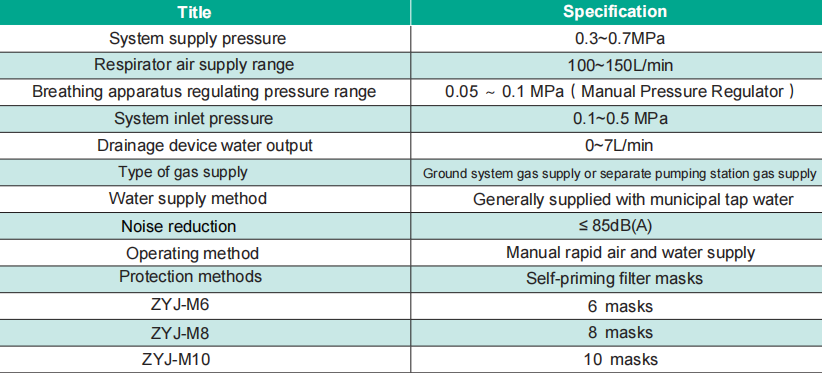

3. Technical Parameters
