‌1. Overview

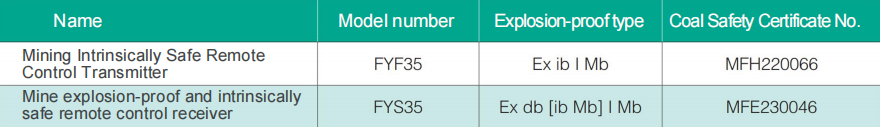

       Mining wireless remote control device is our newly developed wireless remote control product, which is mainly composed of two parts: FYF35 mine intrinsically safe remote control transmitter and FYS35 mine explosion-proof and intrinsically safe remote control receiver. The mine-type intrinsically safe remote control transmitter can collect the switch status at regular intervals and transmit it to the mine-type explosion-proof and intrinsically safe remote control receiver through the wireless radio frequency RF network. This product is characterized by strong real-time, light weight, small volume, compact structure, simple wiring, low power consumption, easy installation and use.

2. Product Features

FYF35 mining intrinsically safe remote control transmitter Features:

(1). Battery powered (rechargeable);

Meet the requirements of low power consumption, in the CPU selection + peripheral circuit power consumption control + software low power consumption above the control.

(2). Expandable multi-way matrix keypad;

Matrix key layout is easy to expand later.

(3). Wireless transmission distance to meet the basic needs;

Wireless module data transmission needs to realize the transmission and reception of countless signals within a certain distance.

FYS35 mining explosion-proof and intrinsically safe remote control receiver features:

(1). CPU real-time processing function;

The data processing of the wireless RF transmitter transmitting to the receiver side, sequentially analyzing the data output corresponding to each function key, and driving the relay output of the latter level through the hardware serial-to-parallel output driving circuit.

(2). Time-out automatic reset function after the transmitter is powered off;

In the process of remote control operation, if there is a power failure of the remote control transmitter operation, the receiver will disconnect all output drive signals when it detects the timeout.

(3). New item for communication expansion with PLC;

The later demand for the latter level of output communication reading and writing involves non-standard customized data transmission protocols.

3. Main Functions

(1). Basic functions of mine intrinsically safe remote control transmitter:

a) It has 20 key switches and 1 power switch.

b)Under-voltage indication function: under-voltage indicator lights up to show that the power is insufficient.

c) Automatic hibernation function: real-time monitoring of the state of the key pressed, after a long time without operation, it will automatically enter the hibernation low-power mode to save energy consumption.

It can save energy consumption.

(2). The basic functions of mine explosion-proof and intrinsically safe remote control receiver:

a) Control function: the receiver has the function of controlling the external equipment according to the external trigger signal and the specified control strategy.

b) Display function: the receiver can display the status of power supply, operation, communication and fault in real time.

4. Main technical indicators

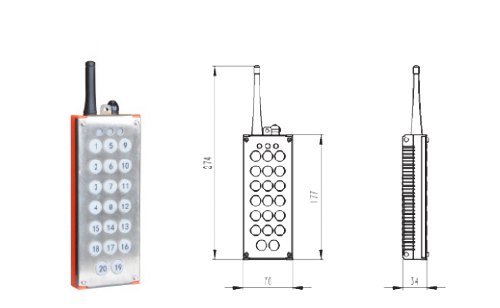

The main technical parameters of FYF35 mine intrinsically safe remote control transmitter:

(1.) Power supply battery use time and battery life

a) Power supply battery: three lithium-manganese dioxide batteries in series to form a battery pack power supply, a single battery capacity of 1500mAh, the battery pack rated voltage DC9.3V.

b) Battery pack working time: continuous working time＞12 days.

(2.) Launch current: ≤20mA.

(3.) Transmitting time: 30ms～50ms.

(4.) Standby current: ≤5mA.

(5.) Standby time: 2.0s～5.0s.

(6.) Working mode: wireless simplex transmission

a) Modulation mode: FSK

b)Operating frequency: 425~450MHz

c)Transmit field strength: -30dBm ~10dBm

d)Transmitting distance: (0-35)m (without obstruction)

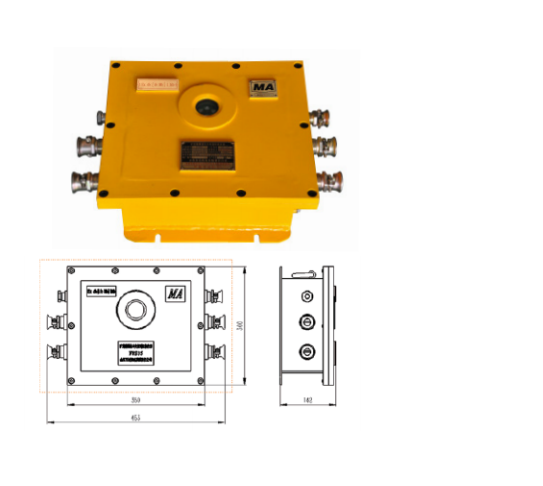

FYS35 mining explosion-proof and intrinsically safe remote control receiver main technical parameters:

(1.) Rated working voltage: AC127V;

(2.) Wireless technical parameters

a) Receiving frequency: 425MHz～450MHz

b) Remote control receiving distance: remote control receiving distance: 0-35m (without blocking);

(3.) Output relay contact 20 ways, capacity 50V/2A

(4.) RS485 signal transmission

a) Transmission method: RS485;

b) Number of interfaces: 1 way;

cTransmission rate: 9600bps;

d Larger transmission distance: 300m.
