1. Summarize
The ZKC127(A) Mining Division Control Turnout Device is mainly used for the automatic control of the turnout of the roadway under the coal mine, replacing the manual moving turnout. The automatic control device is used by the motorcycle driver to control the position of the turnout with a transmitter (or button), and there is a turnout display above the turnout to show the position of the turnout. The device is simple in structure, reliable in operation, and convenient in maintenance, which effectively improves working conditions and increases transportation efficiency.
2. Functional Features
(1). MCU integrated control system: When the controller receives the transmitter (or button) signal, it can control the actuator (cylinder or hydraulic cylinder) to move the turnout, and when the turnout is in place, the display shows the
turnout position;
(2). Display function: the display can correctly show the current position of the turnout;
(3). Tip function: When both sides of the turnout are not in place, the display does not show the turnout position;
(4). Transmitter remote control distance: 0～50m (no obstruction), remote control angle: 0°～300°;
(5). High sensitivity to turnout action. Action time: ≤3s.

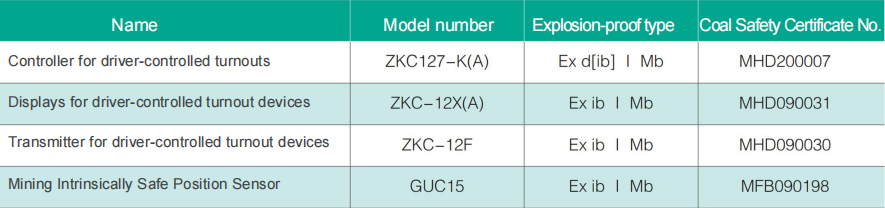

3. Composition of the device and its main technical parameters
4. Main Technical Parameters
(1). ZKC127-K(A) Controller for Division-controlled
Turnout Device
a. Rated operating voltage: AC127V, Current: 200mA;
b. Intrinsically safe parameters: U0:DC12.2V,I0:950mA.
(2). ZKC-12X(A) Display for Division-controlled Turnout
Device
a. Rated working voltage: DC12V;
b. Effective display distance: ≤20m.
(3). ZKC-12F Transmitter for Division-controlled Turnout
Device
a. Rated working voltage: DC12V;
b. Rated working current: ≤60mA;
c. Transmission effective distance: ≤50m.
(4). GUC15 Mining Intrinsically Safe Position Sensor
a. Rated working voltage: DC12V;
b. Capacity of contact: DC12V/1A;
c. Action distance: ≤15mm.
