‌1. Overview

FGY series hydraulic high level tipper is used for transferring minerals between box mine car and mine car transporter, it can be used to load minerals side by side into self-discharging laden car or other transportation equipments, it can be widely used in coal, metallurgy, chemical industry, building materials and other industries, and it is suitable for mines using car gangue discharge or exporting coal by car, and the areas with high underground water level.

2. Device characteristics

FGY series is divided into ordinary hydraulic high level overturning machine and winch traction high level overturning machine, ordinary hydraulic high level overturning machine is composed of chassis, supporting arm, overturning arm, chute, overturning cylinder, reset cylinder, hydraulic station, electric control, etc.; winch traction high level overturning machine is composed of chassis, supporting arm, overturning arm, chute, hauling winch, reset cylinder, hydraulic station, electric control, etc.. hydraulic station, electric control and so on.

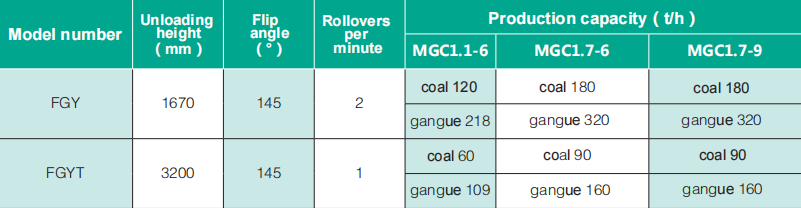

3. Technical parameters
