‌1. Overview

QZC series pneumatic blocker is an indispensable safety protection device in the process of coal mine rail transportation, which is used in the route of coal mine transportation track, controlling the positioning and stopping of mine cars, preventing mine cars from slipping, separating cars and taking off hooks, etc. The QZC series pneumatic blocker is of the blocking wheel type, which adopts the gas power to realize the opening and closing of blocking wheels, and the pneumatic control device can be installed in the position far away from the blocker, which makes the workers operate far away from the blocker and avoid the close operation of the workers. The pneumatic control device can be installed in the position far away from the blocker, which can make the workers operate far away from the blocker, avoiding the workers' close operation, and it can conveniently and quickly block and stop the transported mine cars, thus providing an effective guarantee for the safety of the coal mine track transportation.

2. Performance Characteristics

(1). Pneumatic operation, quick action, labor-saving operation.

(2). The switch operation can be far away from the blocker, safe and reliable.

(3). Simple structure, small volume, light weight, easy installation and maintenance.

3. Main Structure

QZC series pneumatic blocker consists of left and right wheel blocking parts, machine base, air control device and other components. When the wheel stopper is closed, it blocks the mine car wheel to stop the car and has buffering effect. When the wheel block is opened, the mine car can pass through the blocker. The closing and opening of the wheel block is controlled by the pneumatic control device, moving the pneumatic control valve of the pneumatic control device, the cylinder pushes the blocker wheel to open, and when the mine car passes through, the reverse moving of the pneumatic control valve will open the wheel block. When the mine car passes through, move the pneumatic control valve in the opposite direction, the cylinder pushes the blocker wheel block to close.QZC series pneumatic blocker has general-purpose type (QZC), simple type (QZCY), two-way blocker type (QZCS), the general-purpose pneumatic blocker dismantles the pneumatic control device, and installs a manual mechanism to become a manual blocker.

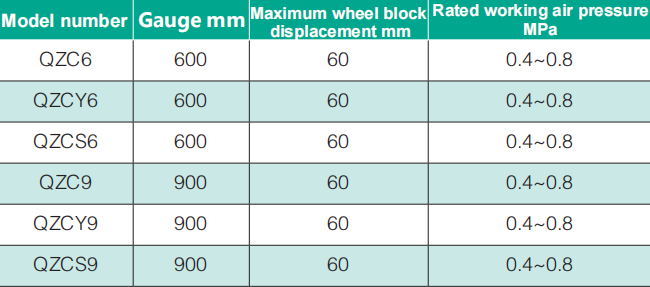

4. Technical Parameters
