ZPW12 Mining Wireless Automatic Watering and Dusting Device

ZPW12 mine wireless automatic sprinkler dust reduction device (hereinafter referred to as the device) structure for mining intrinsically safe design, in the circuit system has a greater innovation, with integrated circuit integration sensor (according to user requirements, configuration of a variety of principles of sensors), time settings, function settings, such as automatic control circuits; a variety of measures to ensure that automatic sprinkler device can be a long time to work continuously without failures. The device has a built-in battery power supply, making it easy to install and maintain.The device is mainly used in the transportation roadway, the main roadway, the return airway, the underground depot, and other places to reduce the coal dust, dust, gas concentration, etc. in the roadway. The device is simple and quick to set the sprinkling time, and the user can set the sprinkling or stop spraying time at will. It can realize the function of stopping spraying after a person passes and continuing spraying after a delayed set time after a person passes. The device has a built-in battery and adopts wireless signal control, which does not need to be connected and greatly facilitates installation and maintenance.

Subcategory：MINING ELECTRICAL
Product Info
1.Summarize

       ZPW12 mine wireless automatic sprinkler dust reduction device (hereinafter referred to as the device) structure for mining intrinsically safe design, in the circuit system has a greater innovation, with integrated circuit integration sensor (according to user requirements, configuration of a variety of principles of sensors), time settings, function settings, such as automatic control circuits; a variety of measures to ensure that automatic sprinkler device can be a long time to work continuously without failures. The device has a built-in battery power supply, making it easy to install and maintain.The device is mainly used in the transportation roadway, the main roadway, the return airway, the underground depot, and other places to reduce the coal dust, dust, gas concentration, etc. in the roadway. The device is simple and quick to set the sprinkling time, and the user can set the sprinkling or stop spraying time at will. It can realize the function of stopping spraying after a person passes and continuing spraying after a delayed set time after a person passes. The device has a built-in battery and adopts wireless signal control, which does not need to be connected and greatly facilitates installation and maintenance.


2. Functional Features

(1). The device has a built-in portable rechargeable lithium battery power bank, which is easy to install, fix, and replace without external wiring;

(2). With various working modes such as thermoluminescence control, timed sprinkling, time-sharing sprinkling, touch sprinkling, etc., it is suitable for the reduction of coal dust, dust, and gas concentrations in the main underground workplaces;

(3). The wireless automatic watering and dusting device can be used to force open or close the spray ball valve and the external wireless sewage ball valve using an external remote control under any working condition;

(4). The wireless automatic wind and water control device has a built-in high-density water quality filter, which is able to provide a good enhancement of the water quality on site;

(5). Each time the water curtain is turned off, the water flow is turned off first, and then the wind flow is turned off, which can use the high-pressure wind flow to clean the residual water stains and bonded dust around the
nozzles by air-drying;

(6). Users can set the daily automatic sewage discharge time according to the site use, when the set time arrives, it can realize the comprehensive dirt cleaning of the system pipeline; The built-in LORA wireless RF module can realize data broadcasting, fixed-point transmission, master-slave mode, fixed-point wake-up, and other transmission modes, supporting ultra-low power consumption, diversified functions, and extremely high stability.


3. Main Technical Parameters

ZPW12-Z Mining Wireless Automatic Watering and Dust Reduction Device Main Unit



(1). Rated voltage: DC11.1V battery power supply;
(2). Working current: ≤1A;
(3). Ball valve caliber: 20mm.


DFH20/7W Mining Intrinsically Safe Wireless Motorized Ball Valve



(1). Rated voltage: DC12V ;
(2). Working current: ≤1A;
(3). Ball valve caliber: 20mm.

GUR12W Mining Intrinsically Safe Wireless Thermal Infrared Sensor


(1). Rated voltage: DC11.1V battery-powered ;
(2). Working current: ≤1A;
(3). Sensing distance: (0～5)m;
(4). Sensing angle: (0～45)°.

ZPW-12C Mining Intrinsically Safe Wireless Touch Sensor


(1). Rated voltage: DC 11.1V battery power supply;
(2). Working current: ≤1A ;
(3). Sensing angle: (0～45)°.

DXH12.5 Mining Intrinsically Safe Power Supply Box


(1). Rated voltage: DC12V ;
(2). Rated current: 1.0A ;
(3). Number of output channels: 1 channel ;
(4). Working time: not less than 5h .

FYF3.5 Mining Intrinsically Safe Infrared Transmitter


(1). Rated voltage: DC3.0V;
(2). Working current:≤900mA;
(3). Emission angle: -20°～20;
(4). Emission distance: (0~3.5)m.

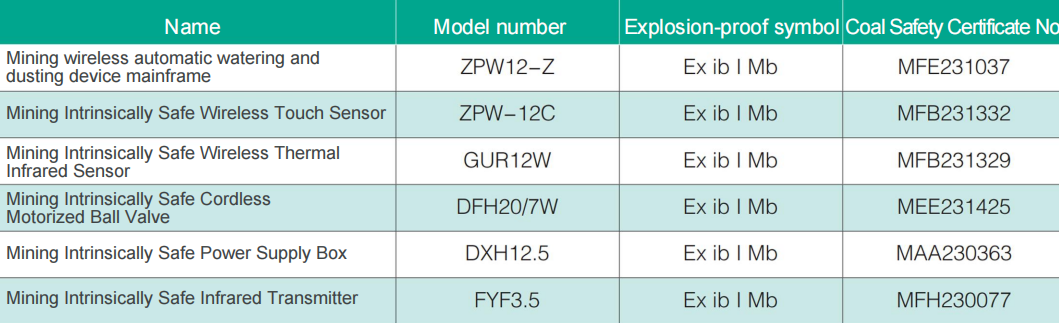

4. Device Composition
