Coal Mine Hydraulic Station

Introduction to coal mine hydraulic station

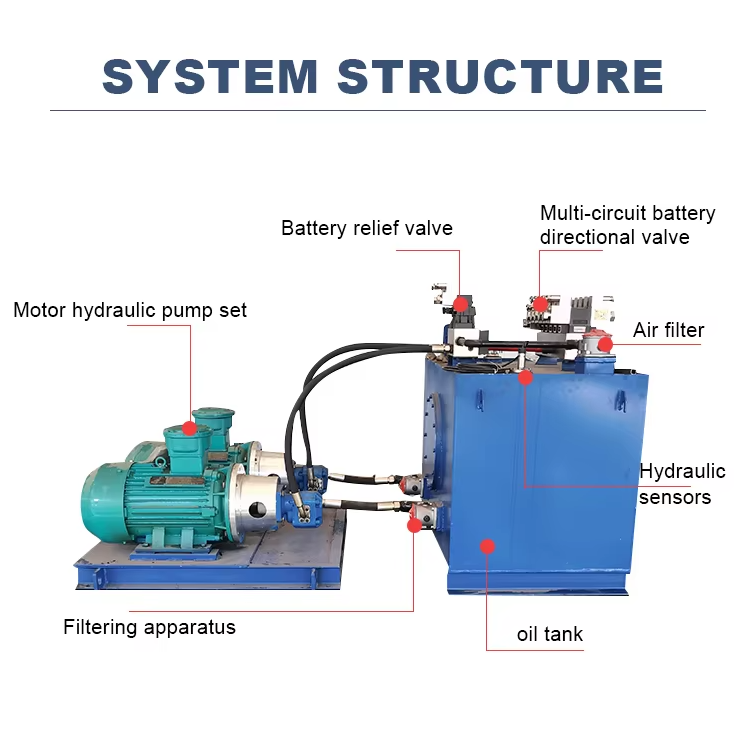

Hydraulic station is a hydraulic source device composed of hydraulic pump, motor, oil tank, electromagnetic reversing valve, relief valve, radiator, accumulator, and so on. According to the flow direction, pressure, and flow rate required by the drive device, it is suitable for all kinds of machinery where the drive device and the hydraulic station are separated and the hydraulic station and the drive device (cylinder or motor) are connected with the tubing to achieve a variety of specified actions.

Working principles of the coal mine hydraulic station

The motor drives the oil pump to rotate, the pump draws oil from the oil pump, and it converts the mechanical energy into the pressure energy of hydraulic oil. The hydraulic oil is assembled into a block (or valve combination) through the oil circuit, and the direction, pressure, and flow are adjusted by the hydraulic valve and then transmitted to the cylinder or the oil motor of the hydraulic machinery through the external pipeline (hard pipe, hose, and pipe joint). Thus, it controls the direction change of the hydraulic motor (cylinder, motor, etc.), the size of the force, and the speed of the speed, and promotes the hydraulic machinery, such as various coal feeders, dampers, and car operation, to do work.

Advantages of the coal mine hydraulic station

1. Speed can be adjusted step-less

2. Remote control of operation can be achieved

3. Can achieve high pressure, can obtain a larger output force with a smaller volume.

4. It can realize automatic control of pressure, speed and direction.
